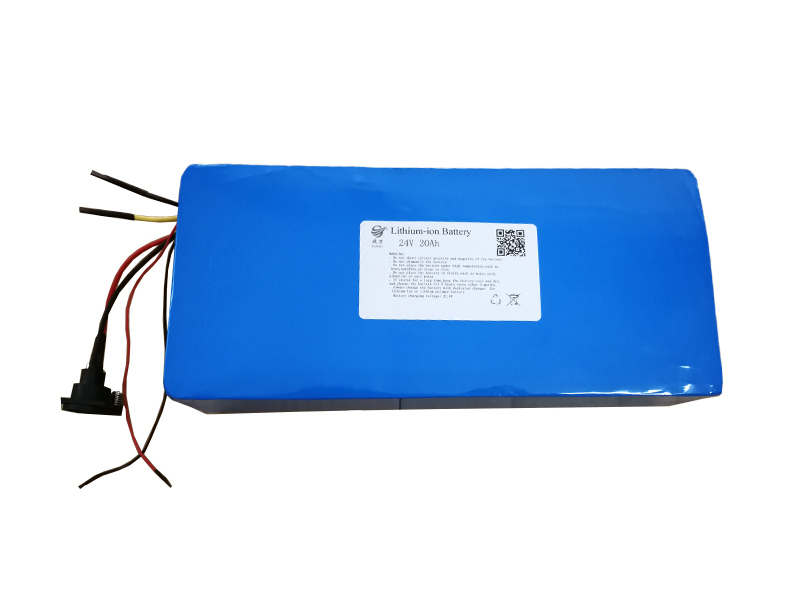

24V Cylindrical Lithium Battery Product Model: XL 24V 20000mAh
Technical parameters of 22.2V cylindrical lithium battery (specifically can be designed according to customer requirements-voltage/capacity/size/line)
Single battery model: 18650
· Single battery voltage: 3.7V
· Nominal voltage after the battery pack is assembled:22.2V
· Single battery capacity: 2.5Ah
· Battery combination mode: 6 strings and 8 parallels
· Battery voltage range after combination: 18~25.2V
· Battery capacity after combination: 20Ah
· Battery pack power: 444Wh
· Battery pack size: 113*148*68mm
· Maximum discharge current: <20A
· Instantaneous discharge current: 30~60A
· Maximum charging current: 0.2~0.5C
· Charge and discharge times: >500 times
· Main chip: (Seiko, TI)
24V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products are tested before leaving the factory
